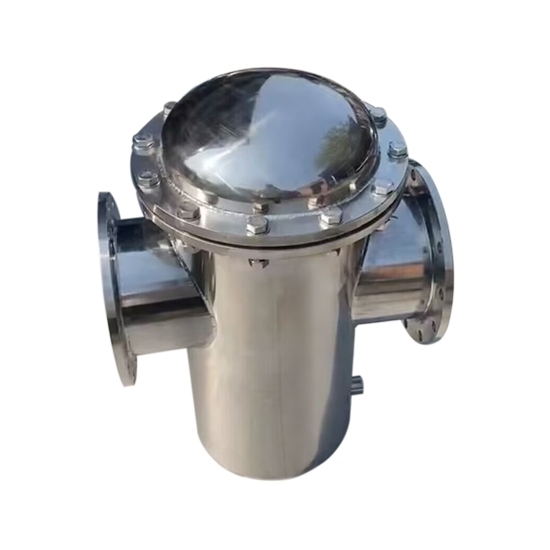

3 inch Stainless Steel Basket Strainer

5 out of 5 based on 2 reviews | Write a review

$720.36

Cost-effective basket strainer features 1.6-10MPa working pressure, stainless steel material, and filtration accuracy of 100-400 mesh. The flanged basket strainer is mainly used to filter impurities in liquid, gas, and steam, and protect equipment and pipelines from damage.

Installation *

SKU: ATO-SSBS-DN80

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview

High quality 3 inch (DN80) stainless steel basket strainer is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. Flange connection, stainless steel materials can withstand high temperatures and pressure.

Specification

Model: ATO-HG80
Type: Basket Type Strainer
Nominal Diameter: 3 inch (DN80)
Working Pressure: 1.6-10MPa
Product Material: Stainless Steel
Connection Form: Flange
Temperature Range: 0°C~330°C
Filtration accuracy: 100-400 mesh
Medium: Water, oil

Dimension (mm)

Stainless steel basket strainer dimension

Detail

Stainless steel basket strainer detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Basket strainer application

Tips: How to maintain a stainless steel basket strainer?

When cleaning impurities, pay special attention to the stainless steel wire mesh on the filter element not be deformed or damaged, otherwise, if the filter is installed again, the purity of the filtered medium will not meet the design requirements, and compressors, pumps, instruments, and other equipment will be damaged.
If the stainless steel wire mesh is found to be deformed or damaged, it must be replaced immediately.

Existing reviews of 3 inch Stainless Steel Basket Strainer

Pipe Size

ATO-SSBS-DN80 is it suitable for 3-inch pipes? Is its stainless-steel material NSF certified for drinking water? It is used for 50% sodium hydroxide.

From: Febico | Date: 20/07/2025

Was this review helpful? Yes No (0/0)

ATO Responded

ATO-SSBS-DN80 strainer is suitable for 3-inch pipes, but it is not NSF certified for drinking water and can be used for 50% sodium hydroxide.

Basket strainer info

I would be interested in some info on this basket strainer. I would like to use something similar for a project we are working on. Need it in 316 stainless steel, preferably with sanitary flanges.

From: Tijuana | Date: 26/05/2025

Was this review helpful? Yes No (0/0)

ATO Responded

Please let me know the grade of material and the different screen sizes available so I can recommend one to you.
