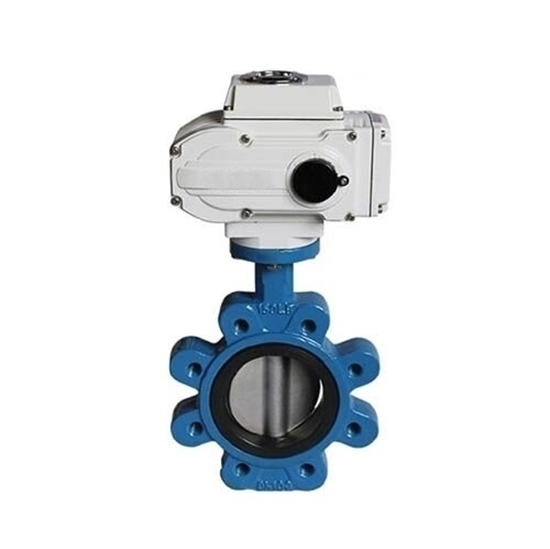

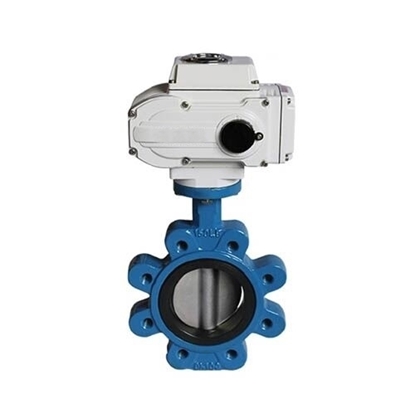

4" Electric Lug Type Butterfly Valve

Note: This electric butterfly valve cannot be used for drinking water.

Lug type butterfly valve 4 inch (DN100) equipped with 10 electric actuator, optional power supply AC 24V/110V/220V, DC 24V, work at -30°C~60°C.

Electuator Specification

Body and Valve Specification

Butterfly Construction

Actuator Dimension (mm)

Details

Features

1. Accurate wafer type butterfly valve turbo-worm structure can output large torque with high efficiency and little noise (Max.50 decibel).
2. Long service life. Self-lock function can stop reverse rotation. Drive part is stable and reliable without additional lubrication.
3. Wafer butterfly valve captive bolts won't fall off when cover is disassembled.
4. Star square hole is easy for square valve stem linear or 45° rotation application.
5. Both vertical and horizontal assemble are available.
6. Control diagram complies with single phase or three phase wiring standard, reasonable wiring diagram and connection terminal can meet requirement of other optional functions.
7. Wafer valve with high sealing performance, standard protection class is IP67.
8. Voltage optional: AC 110V, AC 220V, AC 380V, DC 24V, AC 24V.
9. Lug type butterfly valves possess compact structure, portable, easy to maintain.
10. Optional Function: over torque protectors, dehumidify heater, stainless steel coupling & yoke.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf wafer butterfly valve for home. If you have any questions, please feel free to contact us.

Tips: How to install lug type butterfly valve?

1. The valve is pre-assembled between the two flanges, note the neatly arranged bolt holes.
2. Four pairs of bolts and nuts are gently inserted into the flange holes, and the nuts are tightened a little to correct the flatness of the flange surface.
3. The flange is fixed by spot welding to the pipeline, then the valve is removed. The flange is fully welded and fixed to the pipe.
4. Allow to cool before welding to install the valve. In order to ensure that there is enough space in the valve flange to prevent the valve from being damaged, and to ensure that the valve plate has a certain degree of opening.
