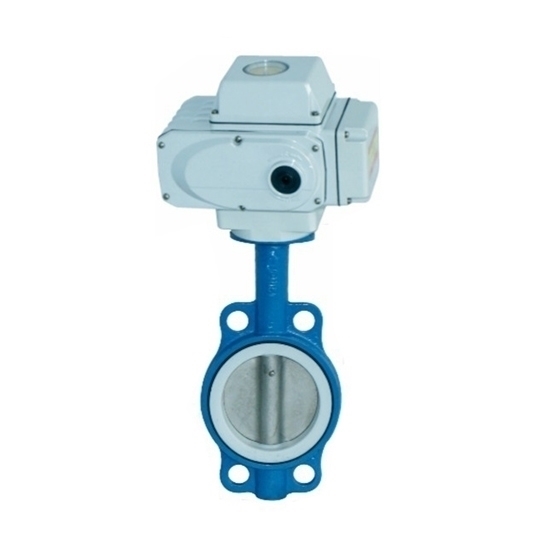

6" Electric Wafer Butterfly Valve

5 out of 5 based on 1 reviews | Write a review

$923.89

6 inch (DN150) electric wafer butterfly valve comes with a double acting electric actuator to work, selectable 110V AC, 220V AC, 380V AC, 24V DC power supply. Cast iron or PVC body, stainless steel or UPVC disc and EPDM seat, working at -10 °C to 120 °C. This electrically operated butterfly valve is a reliable device for air and flow control.

Butterfly Valve Type *
Power Supply *

SKU: ATO-EBV-150WF

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Note: This electric butterfly valve cannot be used for drinking water.

Industrial electric actuated butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	ATO-EBV-150WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	6 inch (DN150, 150mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	ATO-KLST-20
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	80N.m, 9s 100N.m, 15s 150N.m, 20s 200N.m, 30s/ 60s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

Electric wafer style butterfly valve dimension

DN	L	H1	H2	A	D	D1	N-φd
150	56	139	405	255	238	211	4-25

PVC Butterfly Valve Body Dimension (Unit: mm)

Electric PVC butterfly valve dimension

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
240	8-23	241.5	8-23	240	8-18	287	152	169	177	19	70	54	10.5	102	22	372	255

Details

Tips for installing electric butterfly valve

During installation, the valve disc should stop in the closed position.
The opening position should be determined according to the rotation angle of the butterfly plate.
For butterfly valves with bypass valves, the bypass valve should be opened before opening.
It should be installed according to the manufacturer's installation instructions. For butterfly valves with heavy weight, a firm foundation should be set up.

Existing reviews of 6" Electric Wafer Butterfly Valve

Wafer butterfly valve

I need a 6-inch wafer butterfly valve. 150 pound class, flange connection (FF butt welding flat flange) with trunnion end, valve body material CPVC, valve disc CPVC, ball CPVC, valve seat FPM (fluoro rubber), operating lever actuator, design pressure 10.3 bar. Any recommendations?

From: Phoebus | Date: 22/07/2025

Was this review helpful? Yes No (0/0)

ATO Responded

Based on the technical parameters you provided, we do not currently provide butterfly valves of this specification.
