80mm Non Contact Displacement Measurement Sensor

5 out of 5 based on 1 reviews | Write a review

$1,218.89

Aluminum alloy rail type magnetostrictive sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for CNC machinery worked in large vibration.

Output Signal *

SKU: ATO-MSR-A0080

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

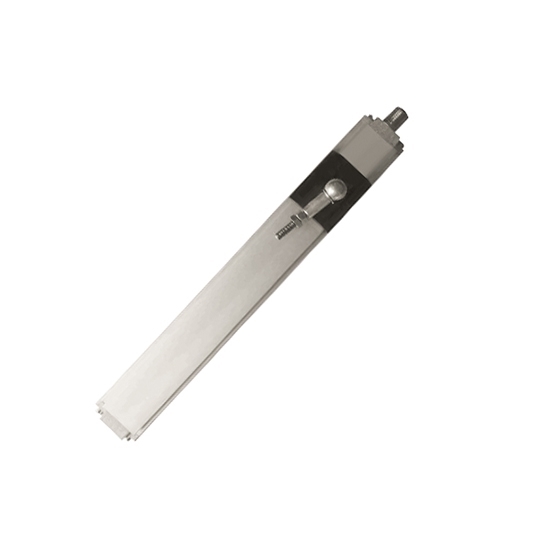

Non contact linear displacement sensor with measuring range 80mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Model	ATO-CTH-A-80
Measuring Range	80mm
Output Signal	0~5V/ 0~10V/ 0~20mA/ 4~20mA (Optional)
Linearity	≤±0.05%FS
Repeatability	≤±0.005%FS
Resolution	Infinite resolution (depending on controller AD and power supply ripple)
Hysteresis	≤0.001%FS
Temperature Drift	≤0.001%FS
Operating Voltage	24VDC
Current Draw	5~16mA
Vibration	5g/10-2000Hz/IEC Standard IEC Standard 68-2-6
Temperature	-40°C~+85°C
Load Characteristics	Voltage output load resistance ≥3KΩ
Load Characteristics	Current output load resistance ≤1KΩ
Connection Type	Slide type or magnetic levitation type
Protection Class	IP65

Dimensional drawing (unit: mm):

80mm non contact displacement measurement sensor size

Installation diagram:

magnetostrictive sensor rail type installation drawing

Tips: Why magnetostrictive sensor is the non contact measurement sensor?
The magnetostrictive displacement sensor adopts working principle of non-contact magnetic induction measurement. So, the problem about mechanical wear will not occur within the full service life of the product. In the meantime, such measuring mode can be favorable for effectively eliminating the measuring error caused by the vibration and enhancing the reliability of the sensor and extending its service life.
