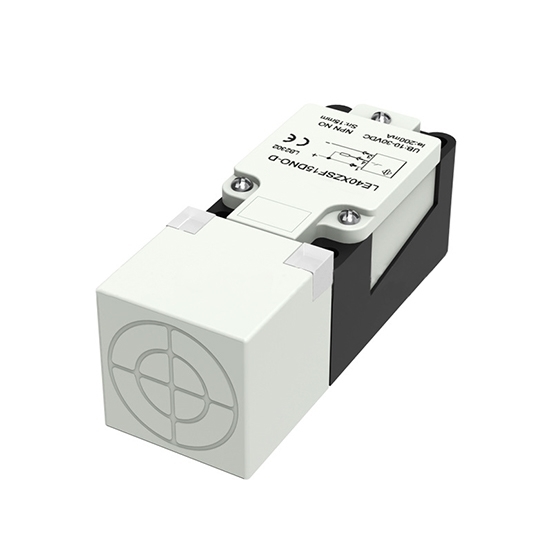

Analog Output Proximity Sensor, Inductive, M12 Connector/ Terminal Connection

5 out of 5 based on 1 reviews | Write a review

$180.32

Inductive proximity sensor for sale online, with M12 connector/ terminal connection two connection types, detection range 2-10mm/ 3-15mm, switching frequency 100Hz/ 50Hz, linearity ≤±5%. The analog output proximity sensor is designed to operate reliably in a wide ambient temperature range of -25℃ to 70℃ and humidity levels from 35% to 95% RH, with an IP67 protection rating, suitable for various industrial environments.

Installation *
Output Mode *
Connection *

SKU: ATO-PS-LR40XZ

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Lower price proximity sensor with flush/ non-flush two installation types, three output methods for selection, current consumption ≤20mA. It has advantages of simple structure, high sensitivity, low output impedance, strong anti-interference ability and high measurement accuracy.

Specification

Model	ATO-LE40XZ
Installation type	Flush	Non-flush
Rated distance	10mm	15mm
Detection range	2-10mm	3-15mm
Switching frequency	100Hz	50Hz
Standard target	Fe 40401t	Fe 45451t
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Connection type	M12 connector/ Terminal connection
Supply Voltage	15-30VDC
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	PBT
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Dimension (unit: mm)

Dimension of proximity sensor of LR18X terminal connection

Wiring diagram

Wiring diagram of proximity sensor of LE40XZ 0-10v

0-10V 0-10V+ 0-20mA

Wiring diagram of proximity sensor of LE40XZ 0-20mA/ 4-20mA

0-20mA/ 4-20mA

Tips: Main application scenarios of analog output proximity sensor

‌Industrial automation‌: Real-time monitoring of the position or displacement of the target object (such as robot arm motion control, conveyor belt material alignment).
Process control‌: Accurate measurement of liquid level, material level or thickness (such as tank level feedback, plate thickness monitoring).
Equipment maintenance‌: Indirect detection of mechanical wear or vibration through distance changes (such as bearing wear monitoring).
Quality inspection‌: Identify small differences in object size or shape (such as component assembly accuracy verification).
‌Robot navigation‌: Provide continuous distance signals to assist obstacle avoidance or path planning (such as AGV obstacle avoidance system).

In this video, ATO will show you the differences between inductive and magnetic.

Change the PNP (NPN) proximity sensor to NPN (PNP)

The polarity of the proximity sensor has two types, PNP and NPN. We show you how to change the PNP (NPN) type proximity sensor to the NPN (PNP) type.

2-wire AC proximity switch/sensor wiring

We have proximity switches with a diameter of 4mm~30mm, applicable voltages are 24V DC/120V AC/240V AC, which can detect metal and non-metal objects.
