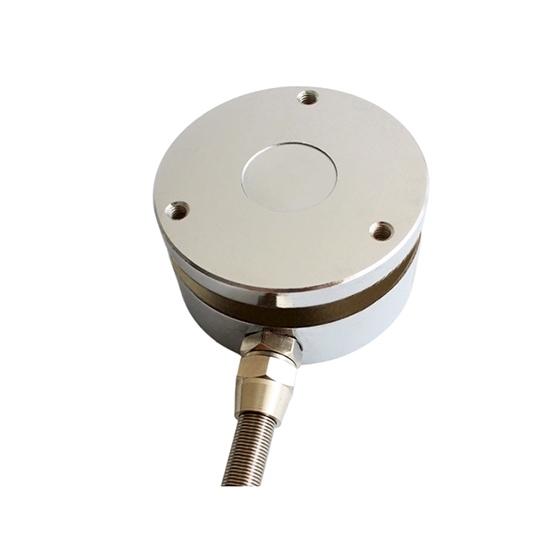

    Flat Load Cell, Diaphragm Type, 50kg/300kg/1 ton to 10 ton

    5 out of 5 based on 2 reviews | Write a review
    $142.69
    Favorable flat load cell with diaphragm type all-in-one design, large force area, available in a variety of ranges from 50kg/300kg/1 ton/2ton to 10 ton, stable and reliable performance, suitable for all kinds of industrial automation measurement and control systems for force measurement and weighing.
    *
    *
    *
    SKU: ATO-LC-102
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Designed for high performance weighing systems, the flat load cells are offered in ranges from 50kg/100kg/200kg/300kg/500kg/1ton/2ton to 10 tons. The unique design of the load cell has a zero drift and creep error of only 0.1% F.S.. The load cell material is made of high quality alloy steel, together with Φ5*2m tensile cable design, to ensure the long term durability and easy installation of the load cell.

    Specification

    Model ATO-DYMH-102
    Capacity Rang 0-50kg/100kg/200kg/300kg/500kg/1 ton/2 ton/3 ton/5 ton/10 ton (optional)
    Matched Transmitter ATO-LCTR-OA (Click it to the transmitter page)
    Matched Display Controller ATO-DPM-DY800 (Click it to the controller page)
    Rated Output 1.0-2.0±0.05mV/V
    Zero Balance ±2%F.S.
    Non-Linearity 0.5%F.S.
    Hysteresis 0.1%F.S.
    Repeatability 0.1%F.S.
    Creep 0.1%F.S. (30min)
    Temp Effect on Output 0.05%F.S./10°C
    Temp Effect on Zero 0.05%F.S./10°C
    Response frequency 10kHz
    Material Alloy steel
    Impedance 700Ω
    Insulation ≥5000MΩ/100VDC
    Working Voltage 5-15V
    Operating Temp Range -20°C~80°C
    Safe Overload 1.5
    Maximum Overload 2
    Cable Specifications Φ5*2m
    Cable Ultimate Pull 10kg


    Dimension (unit: mm)

    Flat load celll size

    Details

    Flat load cell detail

    1. High-quality Alloy Steel: 42CrMo high-strength alloy steel with good hardenability and strong resistance to mechanical fatigue.
    2. Precision Waterproof Connector: 6 angle waterproof connector with spring buffer to prevent wire pulling and breaking.
    3. Industrial High Precision Strain Gauge: Small thermal hysteresis, good heat resistance, small creep, good stability in long-term use.
    4. Planar Structure: The load cell provides a variety of sizes and ranges for selection, with a wide range of applications and high measuring accuracy and good shock resistance.

    Load Cell Force Diagram

    Flat load cell force diagram

    Wiring Drawing

    Flat load cell wiring drawing

    Note: This is the pressure wiring of the load cell, such as the measurement of tensile force need to be the definition of the green wire and white wire wiring alignment.

    Tips: What is a flat load cell?

    Flat load cells are compact force measuring devices designed to measure compressive forces or weights. Its flat shape is suitable for installation in places where space is limited. Due to their high accuracy and sensitivity, flat load cells are often used in industrial equipment, automated production lines, test instruments and medical devices.

    When installing a flat load cell, make sure its bottom and contact surface are flat and clean to avoid measurement error. The load cell needs to be fixed to the mounting surface by means of screws or adhesives, depending on the application environment. When connecting, use the special signal cable provided by the manufacturer and wire correctly according to the equipment instructions. In addition, avoid applying excessive lateral forces or impacts on the sensor housing to prolong the service life.

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

    In this video, ATO offers a variety of load cells and weigh modules designed for your applications.

    Existing reviews of Flat Load Cell, Diaphragm Type, 50kg/300kg/1 ton to 10 ton
    Recommendations load cell
    We need a piezoelectric load cell for impact testing. We would like a load cell with a range of at least 5000 lbf to 10000 lbf and fast data acquisition. Please give me some recommendations.
    From: Paffan | Date: 21/05/2025
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. When performing a drop test, the sensor usually needs to be amplified by 2 times. So if your load is 10,000 lbf, I would recommend a 10 ton range and pair it with this flat film load cell. Part number: ATO-LC-102, range 0-10 tons. 2. We recommend this handheld digital panel meter for load cells, part number: ATO-DPM-920H, which can capture impact forces.
    Good Quality of Flat Load Cell, Diaphragm Type, 50kg/300kg/1 ton to 10 ton
    I am satisfied with this Flat Load Cell, The performance and quality of Diaphragm Type! This sensor offers multiple range options from 50kg to 10 tons, which can be flexibly applied in various scenarios. I used 1-ton and 5-ton models in mechanical force measuring equipment, and the measurement results were accurate and stable. The shell is made of high-quality stainless steel material, which is corrosion-resistant and suitable for various harsh working environments.
    From: Young | Date: 13/01/2025
