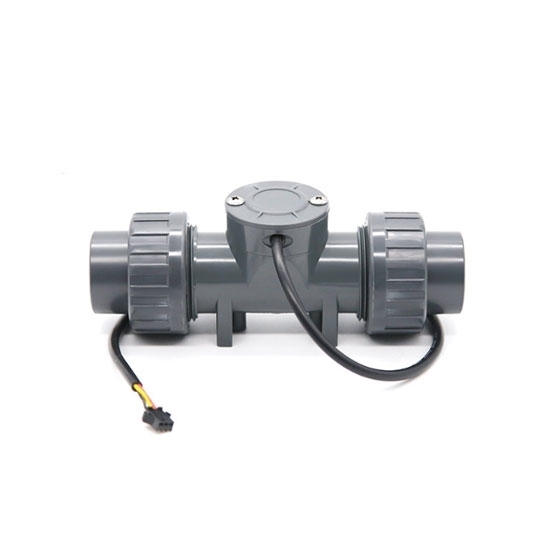

PVC Flow Meter for Irrigation, 5~280/750/3000L/min

Write a review

$69.89

The competitively priced PVC flow meter can measure flow rates of 5–280, 750, or 3000 L/min. The PVC chemical-resistant flow meter is resistant to acids and alkalis, operates at 3.5–24V, and supports temperatures up to 80°C. Application for agricultural irrigation, fish ponds, industrial water purification equipment, wastewater treatment plants.

Flow Range *

SKU: ATO-FLOW-PVC

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

PVC flow meter handles flow rates of 5~280, 750, or 3000 L/min. It's acid and alkali resistant, runs on 3.5–24V, and works in temps up to 80°C. Has strong sealing performance and a solid valve body that resists deformation. Great for irrigation, fish ponds, water treatment, and industrial use.

Specification

Model	ATO-ZJPVC-DN15	ATO-ZJPVC-DN20	ATO-ZJPVC-DN25	ATO-ZJPVC-DN32
Flow Range	5~100 L/min	10~150 L/min	20~280 L/min	40~460 L/min
Nominal Diameter	DN15	DN20	DN25	DN32
Inner Diameter	20.3 mm	25.4 mm	32 mm	40 mm
Outer Diameter	27 mm	32 mm	40 mm	49 mm
Material	PVC	PVC	UPVC	UPVC
Operating Voltage	3.5~24 V	3.5~24 V	3.5~24 V	3.5~24 V
Pulse Characteristic	F=1.8*Q	F=1.4*Q	F=1.16*Q	F=0.69*Q
Operating Temperature	≤80℃	≤80℃	≤60℃	≤60℃
Pressure Resistance	≤1.75 MPa	≤1.75 MPa	≤2.0 MPa	≤2.0 MPa
Application	Agricultural irrigation, sewage treatment, waterworks, etc.

Model	ATO-ZJPVC-DN40	ATO-ZJPVC-DN50	ATO-ZJPVC-DN65	ATO-ZJPVC-DN80
Flow Range	50~750 L/min	60~1160 L/min	80~1980 L/min	100~3000 L/min
Nominal Diameter	DN40	DN50	DN65	DN80
Inner Diameter	50 mm	63 mm	75.5 mm	90.5 mm
Outer Diameter	59 mm	74.5 mm	86 mm	102 mm
Pipe Material	UPVC	UPVC	UPVC	UPVC
Operating Voltage	3.5~24 V	3.5~24 V	3.5~24 V	3.5~24 V
Pulse Characteristic	F=0.38*Q	F=0.22*Q	F=0.13*Q	F=0.075*Q
Operating Temperature	≤60℃	≤60℃	≤60℃	≤60℃
Pressure Resistance	≤2.0 MPa	≤2.0 MPa	≤2.0 MPa	≤2.0 MPa
Application	Agricultural irrigation, sewage treatment, waterworks, etc.

Feature

PVC flow meter feature

Corrosion Resistant: Made from high-quality PVC, the pvc flow meter resists acid and alkali corrosion, ensuring long-term durability.
Long Service Life: Precision structure reduces internal friction, extending product lifespan significantly.
Clear Flow & Low Resistance: Designed for high flow rates with minimal water resistance, improving system efficiency.
Reliable Sealing: Tight mechanical seals and high dimensional accuracy prevent leakage and enhance stability.
Solid & Deformation-Resistant: One-piece molded valve body with smooth, burr-free surface for superior durability.
Chemical Compatibility: The chemical resistant flow meter suitable for aggressive liquids such as strong acid/base solutions, ozone, and urea.
Versatile Applications: Ideal for farmland irrigation, fish ponds, industrial water purification systems, and wastewater treatment plants.

Dimension (unit: mm)

PVC flow meter size

Wiring Method

PVC flow meter wire

Correct Mounting Position

PVC flow meter correct installation

Application

PVC flow meter application

Tips: Can this PVC flow meter work with solar-powered irrigation systems?

Yes, this PVC flow meter is well-suited for solar-powered systems, thanks to its low voltage requirement (3.5–24V) and minimal current draw. It can be connected directly to a solar-powered controller or data acquisition module, making it ideal for remote or off-grid farms. Because it uses a simple pulse signal output, it’s compatible with many low-power microcontrollers, such as Arduino or ESP-based systems used in smart irrigation setups. This flexibility allows farmers to implement automated irrigation schedules, monitor daily water use, or trigger alarms if water flow drops unexpectedly—all with minimal energy consumption.
