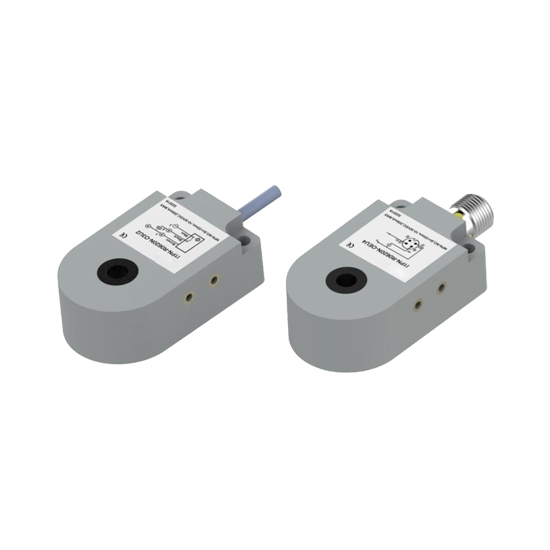

    Inductive Proximity Sensor, Ring Type, 10mm, PNP

    Inductive Proximity Sensor, Ring Type, 10mm, PNP

    Write a review
    $127.78
    High quality inductive proximity sensor at affordable price, ring type proximity sensor with 10mm diameter, NPN/ PNP/ 2 wire three output types for selection, embedded type installation, > 20MΩ insulation resistance and repeated accuracy ≤5%. The inductive ring sensor uses ABS plastic shell material, has IP67 protection level, and can operate stably in harsh industrial environments.
    *
    *
    SKU: ATO-RTPS-T10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Ring type inductive proximity sensor with 10 mm diameter, PNP type output, manufacturer direct sale. The inductive ring sensor is generally used to detect small objects, such as blanking detection, small steel balls, small springs, small rivets, metal wire breakage, wire breakage detection.

    Features

    • The ring inductive proximity sensor provides a variety of sensing options to meet the needs of various industrial applications.
    • It supports cable connection or micro quick disconnect connectors, which is flexible in installation and easy to maintain.
    • Some models of inductive ring sensors have adjustable sensitivity.
    • The sensor supports reverse polarity, short circuit and overload protection to ensure safe and stable system operation.

    Specification

    Model ATO-RTPS-41500 ATO-RTPS-41550
    Lead wire types Direct lead wire M12 connector
    Mounting Embedded
    Output methods DC24V NPN NO
    NC
    NO+NC
    PNP NO
    NC
    NO+NC
    2 wire NO
    NC
    AC110V 2 wire NO
    NC
    AC230V 2 wire NO
    NC
    Operating voltage DC24V 10-36V
    AC110V/ AC230V AC90-250V
    Output current DC24V 100mA (2 wire), 200mA(3/4 wire)
    AC110V 500mA
    AC230V DC 100mA/ AC 300mA
    Ring Diameter 10mm
    Response frequency 500Hz
    Environment temperature -20~80℃
    Insulation resistance >20MΩ
    Repeated accurancy ≤5%
    Leak current ≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
    Shell material ABS
    Protection grade IP67
    Weight 1kg
    Certificates CE, RoHS
    Warranty 12 months


    Dimension: (mm)

    Dimension of 10mm ring type proximity sensor of direct lead wireDimension of 10mm ring type proximity sensor of M12

    Wiring diagram



    Wiring diagram of ring typr proximity sensor     Wiring diagram of ring typr proximity sensor Wiring diagram of ring typr proximity sensorWiring diagram of ring type proximity sensor

    Tips: Advantages of ring inductive proximity sensors

    • The inductive ring sensor uses a non-contact detection method, which can effectively reduce mechanical wear and increase the service life of the equipment.
    • The sensor is designed for metal crossing detection and is suitable for automated processes such as counting, monitoring and material identification.
    • The sensor system responds quickly and can accurately identify fast-moving metal targets to improve production efficiency.
    • Its compact structure design and flexible installation make it easy to integrate into various types of industrial equipment.
    • The proximity sensor has strong anti-interference ability and can operate stably in complex industrial environments.
    • The ring type inductive proximity sensor has high reliability, is suitable for continuous operation, and has low maintenance frequency.

    In this video, ATO will show you the differences between inductive and Magnetic.



    Change the PNP (NPN) proximity sensor to NPN (PNP)

    The polarity of the proximity sensor has two types, PNP and NPN. We show you how to change the PNP (NPN) type proximity sensor to the NPN (PNP) type.
