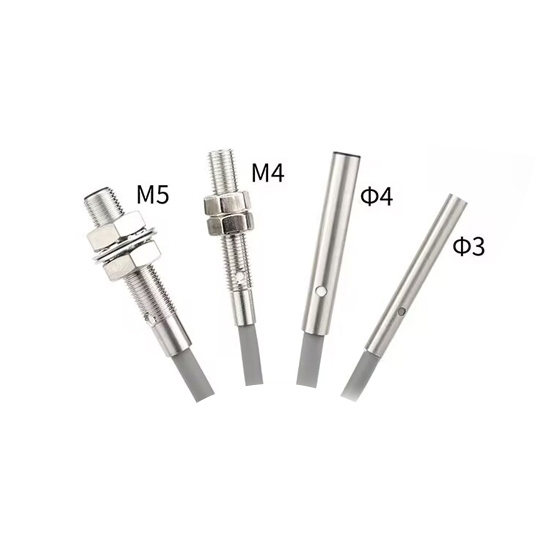

Small Proximity Sensor, Inductive, NPN NO, M4/M5/φ3/φ4

Write a review

$57.26

Small inductive proximity sensors for sale online, with four specifications and models available: φ3, M4, φ4 and M5. Its detection distance covers the range of 0.6mm to 1.5mm, and it adopts NPN normally open (NO) output mode. It is IP67 certified and has a wide operating temperature range of -25℃ to +70℃. The compact design is particularly suitable for installation in small spaces and can be easily integrated into mechanical equipment.

Type *
Detection Distance *
Detection Distance *
Detection Distance *
Detection Distance *

SKU: ATO-SPS-I1S0

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Miniature proximity switch comes with optional types (φ3/M4/φ4/M5), 0.6mm to 1.5mm measurement range, NPN NO output mode, can resistant to environmental factors, and boasts both low and high-temperature resistance. The sensor uses a stainless steel housing with strong corrosion resistance and is suitable for a variety of industrial application scenarios.

Specifications

Model	ATO-I1S030/I1M040/I1S040/I1S050
Installation Method	Flush
Output Method	NPN NO
Detection Distance	0.6mm /0.8mm/1mm (φ3, M4); 0.8mm/1.0mm/1.2mm/1.5mm (φ4, M5)
Operating Voltage	10~30VDC
Continuous Waves	<10%
No Load Current	<6mA
Maximum Load Current	100mA (φ3, M4); 150mA (φ4, M5)
Leakage Current	<0.01mA
Voltage Drop	<1.5V
On-Off Level	2kHz/1.5kHz
Response Time	<0.3ms
Switching Hysteresis	<10% (Sr)
Repeat Accuracy	<3.0% (Sr)
Protection Level	IP67
Operating Temperature	-25℃ ~70℃
Temperature Drift	<10% (Sr)
Reverse Polarity Protection	Yes
Shell Material	Stainless Steel Pipe Fittings
Connection Method	PVC Cord, Medium 2.5 x 3 Cores
Standard Wire Length	2m

Dimensions (Unit: mm)

Small proximity sensor dimensions

Tips: Advantages of small inductive proximity sensor

Small inductive proximity sensors offer several advantages in industrial applications. Their compact size makes them suitable for installations in tight spaces and allows for easy integration into machinery and industrial equipment. The reduced size also contributes to a lighter overall system weight. These sensors are known for their high precision and accuracy in detecting metallic objects without physical contact, ensuring reliable operation.

Small inductive proximity sensors are typically energy-efficient, consuming minimal power during operation. Additionally, they are durable and capable of functioning in challenging environments, thanks to their robust construction. The absence of moving parts enhances their longevity and reduces the need for frequent maintenance. These sensors are versatile, finding applications in various industries for tasks such as object detection, position sensing, and automation. Overall, the compact design, reliability, and versatility of small inductive proximity sensors make them valuable components in industrial automation systems.

In this video, ATO will show you the differences between inductive and magnetic types.

Change the PNP (NPN) proximity sensor to NPN (PNP)

The polarity of the proximity sensor has two types, PNP and NPN. We show you how to change the PNP (NPN) type proximity sensor to the NPN (PNP) type.

2-wire AC proximity switch/sensor wiring

We have proximity switches with a diameter of 4mm~30mm, applicable voltages are 24V DC/120V AC/240V AC, which can detect metal and non-metal objects.
